NOXTITE™ Acrylic Elastomer
ACM providing an optimal balance of heat, oil, and weather resistance
Product Description

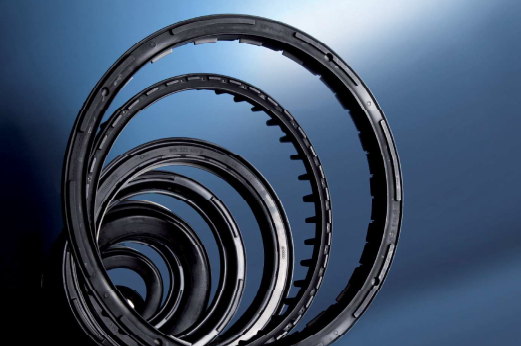

Our NOXTITE acrylic elastomer, with its well-balanced heat and oil resistance, is used in various automotive seals, gaskets, and hoses, contributing to enhanced reliability and safety. It also imparts elasticity and flexibility when used as a raw material for adhesives, and is widely utilized in a variety of industrial materials.
Features
- Enables your products to maintain long-term reliability over a broad temperature range from -40°C up to 185°C.
- Offers outstanding oil resistance to petroleum-based oils, engine oils, gear oils, and torque converter oils even in high-temperature environments.
- Provides excellent ozone and weather resistance, making it suitable for outdoor applications.
Characteristics

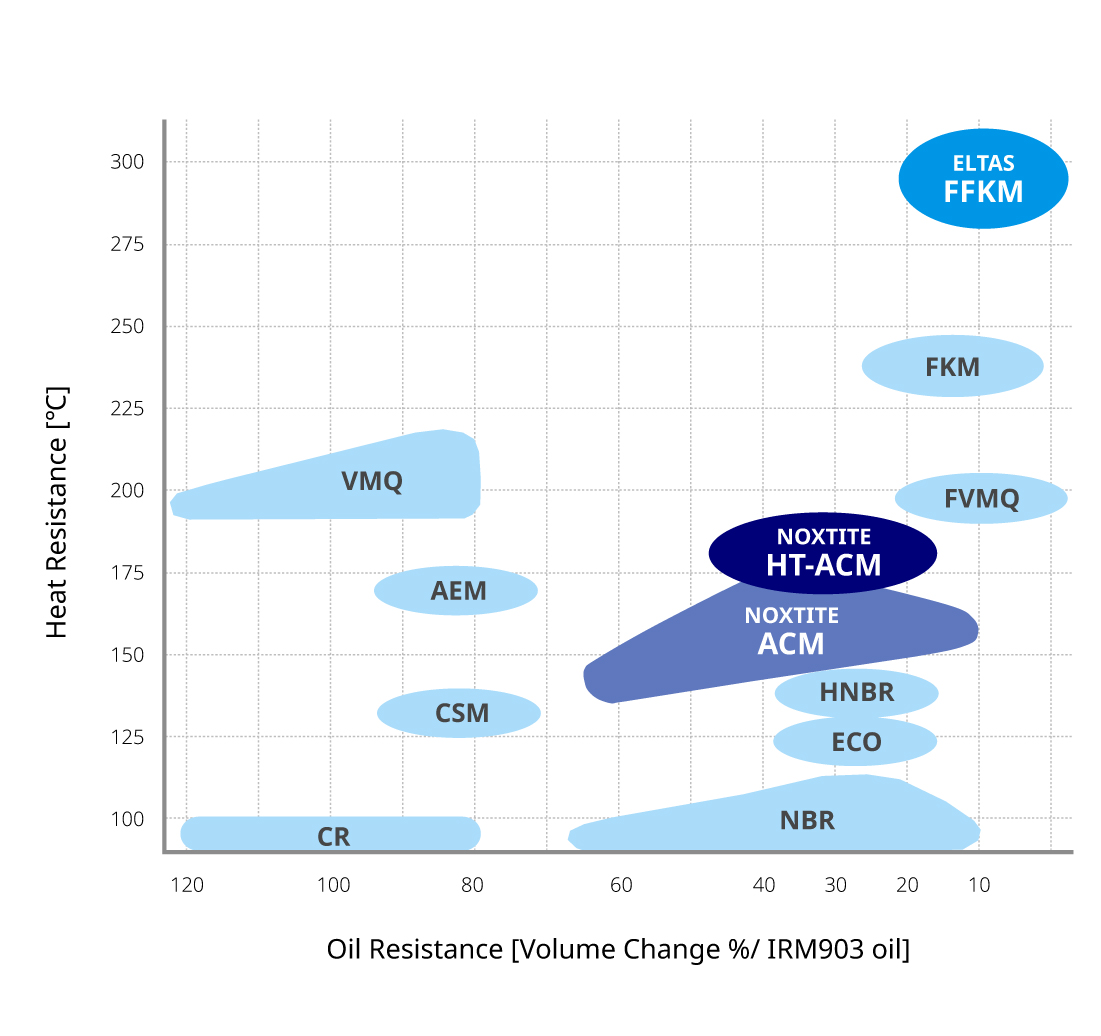

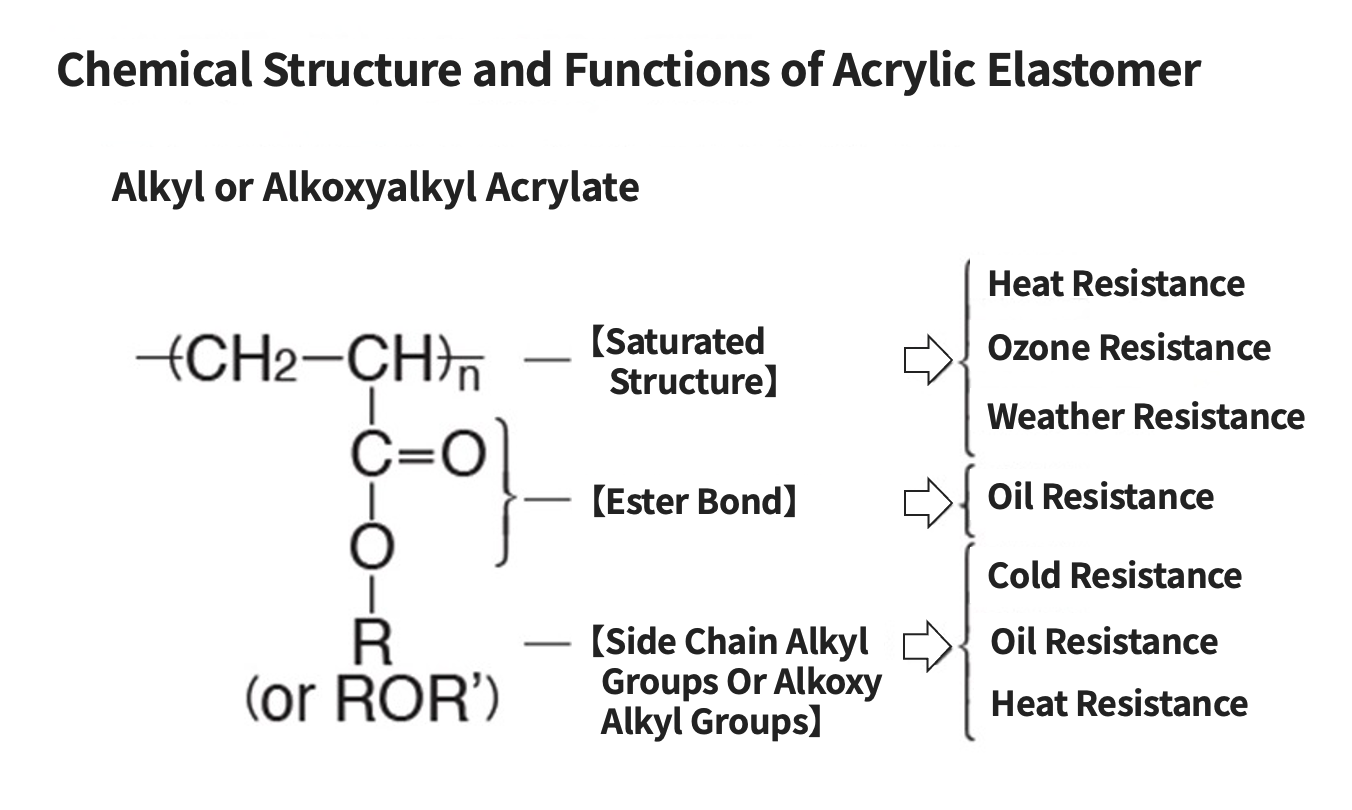

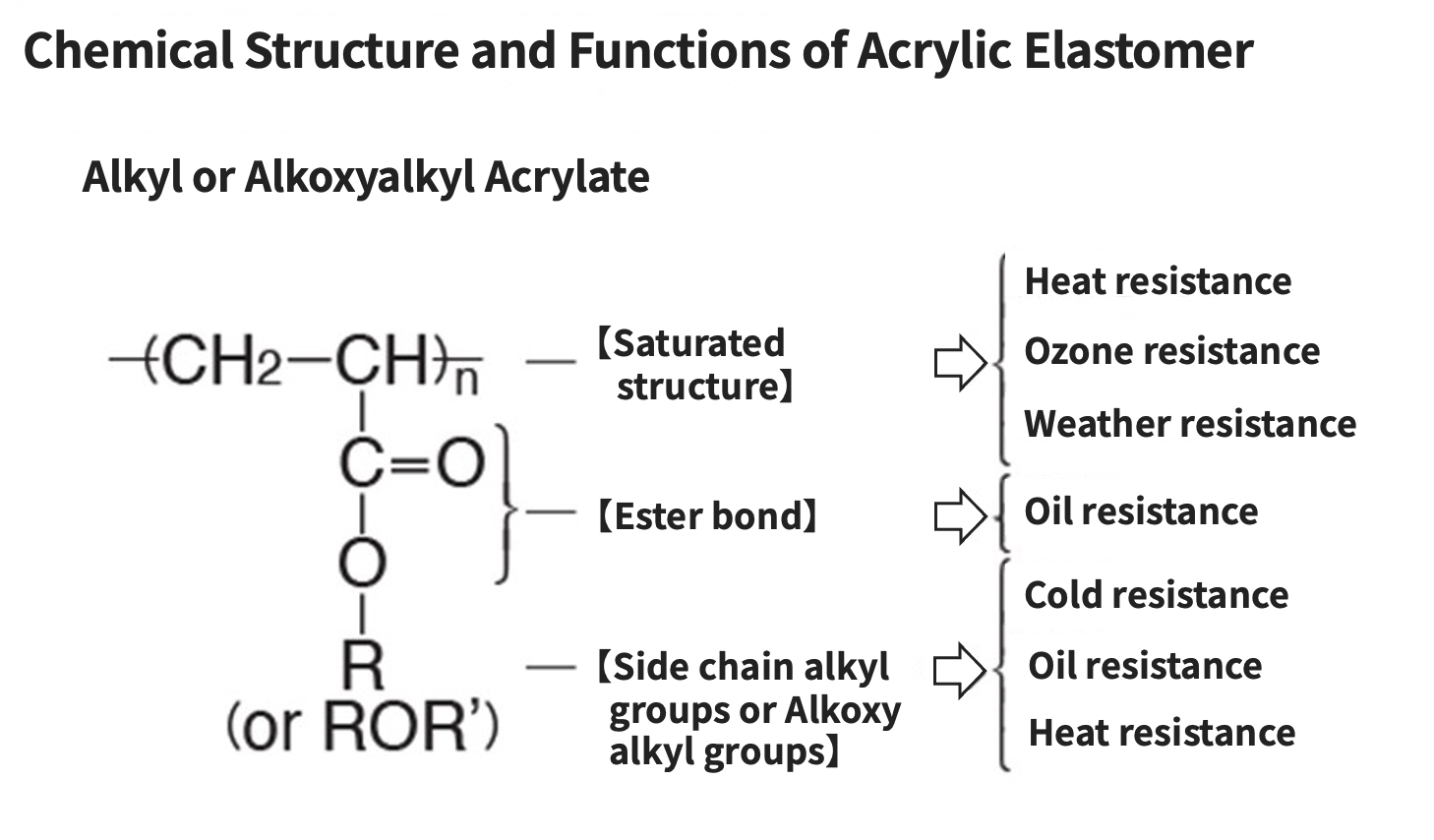

Our NOXTITE acrylic elastomer offers excellent heat and weather resistance due to the saturated bonds in its main chain. Additionally, the ester bonds in its side chains provide outstanding oil resistance. In particular, the high-temperature acrylic elastomer (HT-ACM) grade exhibits minimal degradation over extended periods, even in high-temperature environments.
-
-
*IRM 903 Oil: A reference oil defined in JIS K 6258 for immersion tests of vulcanized or thermoplastic rubber.
The table below shows representative NOXTITE product types.
UNIMATEC offers a variety of products that meet a wide range of needs, including enhanced heat resistance and improved cold resistance.
| Type | Product Name | Mooney Viscosity ML1+4(100℃) |
Low-Temp Properties TR10[℃] |
Applications & Characteristics | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| High Temperature Resistant (HT-ACM) |
NOXTITE PA-522HF | 32 | -27 | Goods for seals and gaskets | ||||||||
| NOXTITE PA-530 | 26 | -27 | Goods for seals and gaskets, good processability |
|||||||||
| NOXTITE PA-526 | 40 | -22 | Goods for hoses | |||||||||
| NOXTITE PA-526L | 27 | -20 | Goods for hoses, good processability | |||||||||
| Low Temperature Resistant (LT-ACM) |
NOXTITE PA-44201 | 30 | -39 | Goods for ultra low temperature seals | ||||||||
| NOXTITE PA-44300 | 31 | -38 | Goods for ultra low temperature seals, good processability |
|||||||||
| NOXTITE PA-42400 | 37 | -28 | Goods for ultra low temperature seals | |||||||||
Evaluation Test Results

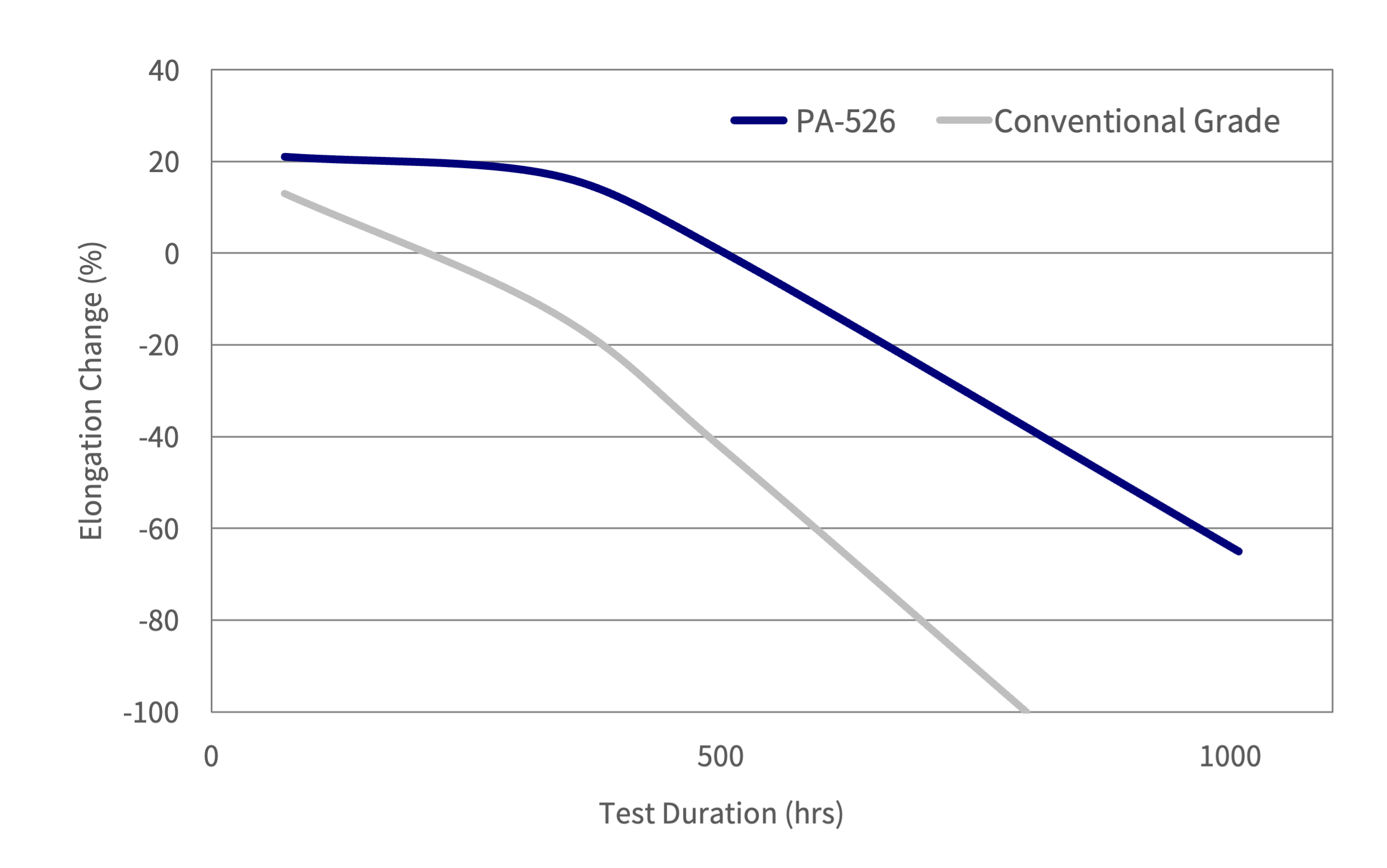

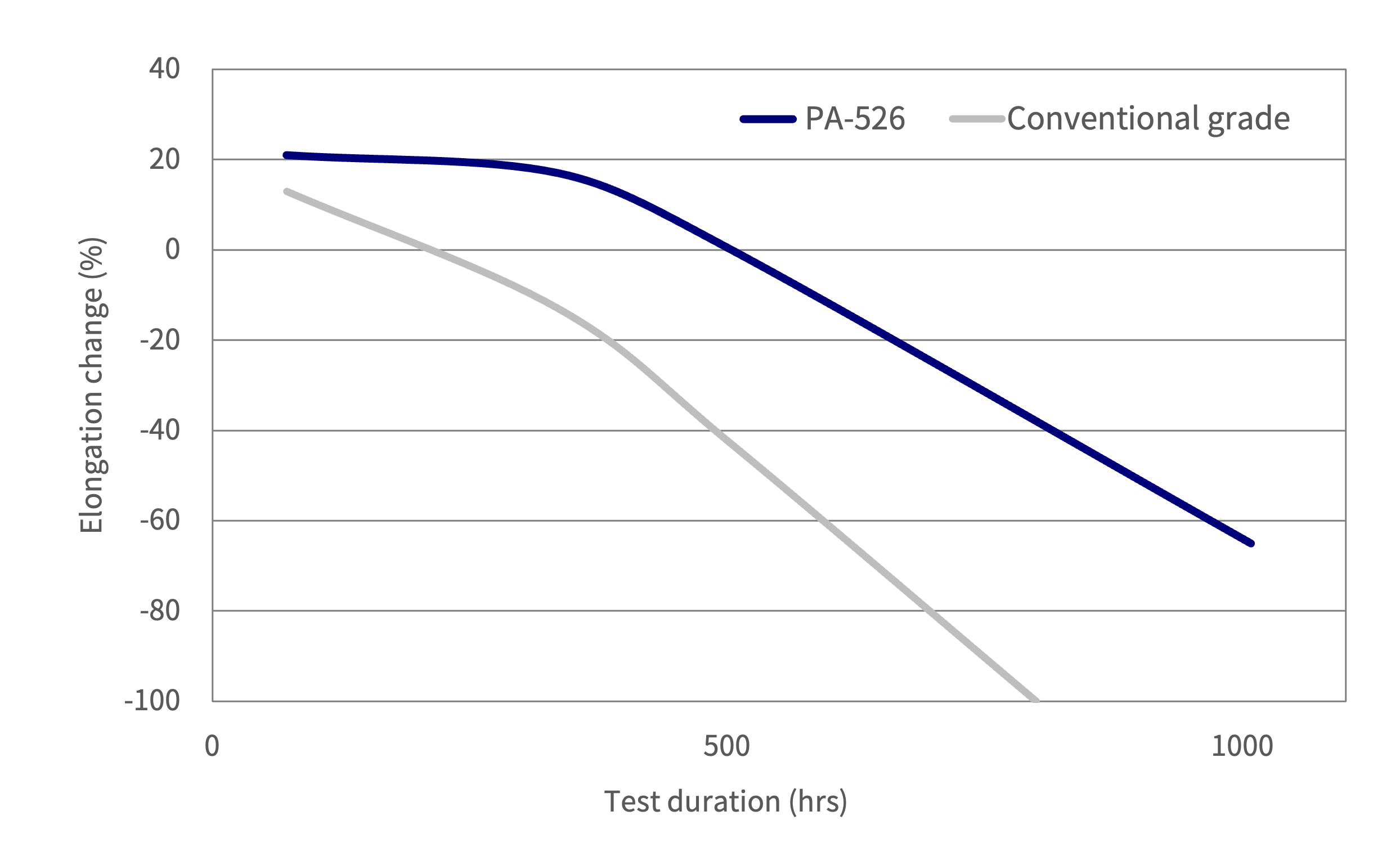

Heat Resistance Test of HT-ACM for Hoses (Test Method: JIS K 6257)
PA-526, a representative HT-ACM grade for hoses, exhibits a lower rate of change in elongation compared to our conventional grades, even after 1,000 hours of heat aging at 175°C.

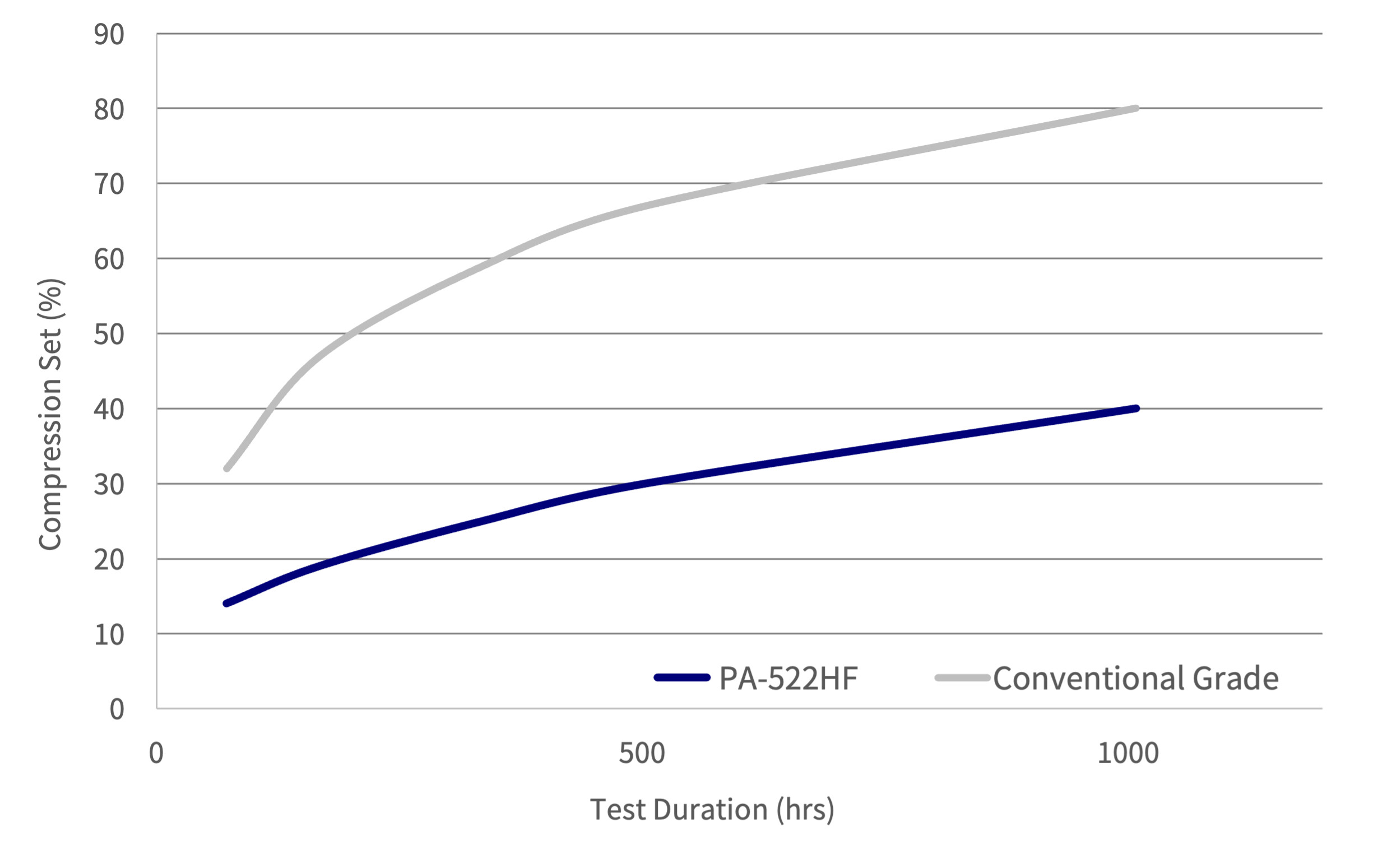

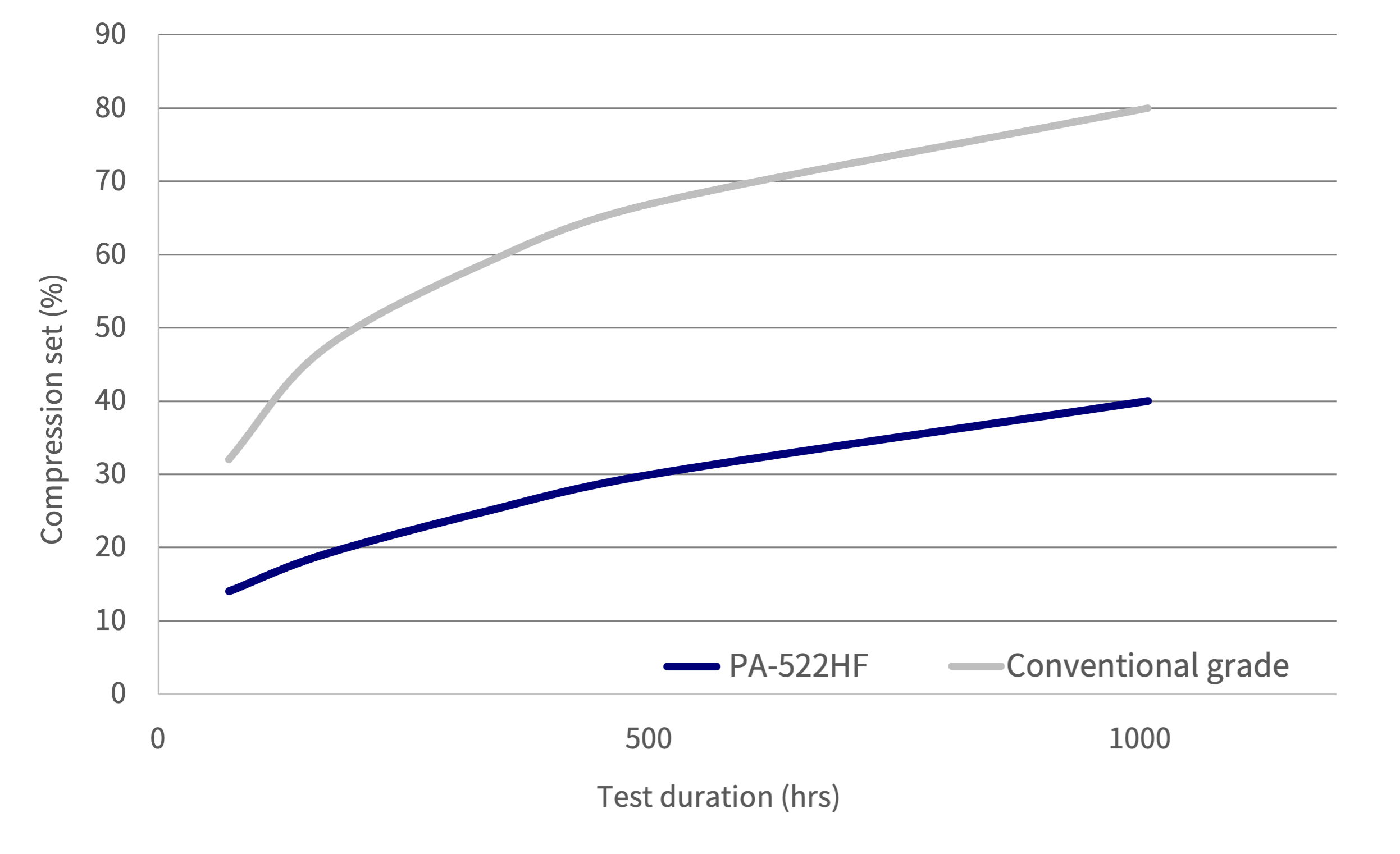

Compression Set Test of HT-ACM for Seals and Gaskets (Test Method: JIS K 6262)
PA-522HF, a representative HT-ACM grade for seals and gaskets, exhibits a low compression set even after 1,000 hours at 150°C, maintaining its sealing properties over a long period in high-temperature environments.

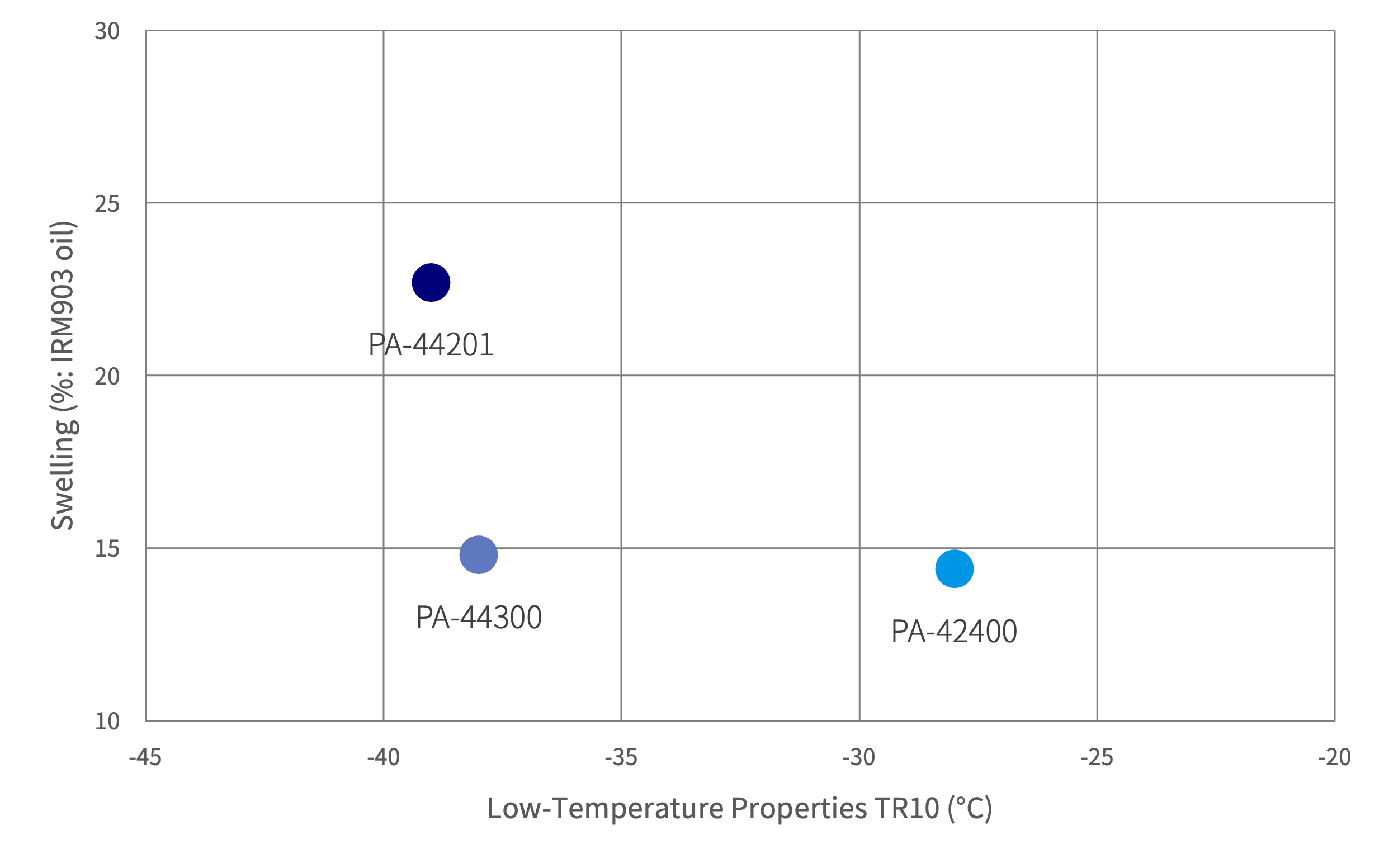

Cold Resistance Test of LT-ACM for Seals (Test Method: TR10, JIS K 6261)
PA-44201, PA-42400, and PA-44300, our representative LT-ACM grades for seals, offer an excellent balance of cold and oil resistance.
* TR: Temperature Retraction (TR) test
A rubber test piece is stretched and frozen. Its elastic recovery (i.e., permanent set at low temperatures) is then measured as the temperature increases.
Product List
* The data presented are representative values based on our testing methods, not guaranteed specifications.
They are subject to change without notice.
Chlorine Type
| Product Name | Mooney Viscosity ML1+4(100℃) |
Low-Temp Properties | Oil Swell(%) - IRM903 |
Crosslinking Site Type | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tg*1(℃) | Tb 50%*2(℃) | TR10*2(℃) | ||||||||||||||
| NOXTITE PA-212 | 40 | -31 | -24 | -27 | +10 | CHEMINOX CL-T-2R/Soap | ||||||||||
Epoxy Type
| Product Name | Mooney Viscosity ML1+4(100℃) |
Low-Temp Properties | Oil Swell(%) - IRM903 |
Crosslinking Site Type | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tg*1(℃) | Tb 50%*2(℃) | TR10*2(℃) | ||||||||||||||
| NOXTITE PA-312C | 41 | -31 | -24 | -25 | +12 | Dithiocarbamate, Ammonium benzoate |
||||||||||
Active Chlorine Type
| Product Name | Mooney Viscosity ML1+4(100℃) |
Low-Temp Properties | Oil Swell(%) - IRM903 |
Crosslinking Site Type | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tg*1(℃) | Tb 50%*2(℃) | TR10*2(℃) | ||||||||||||||
| NOXTITE PA-401 | 55 | -17 | -10 | -12 | +10 | Sulfur/Soap, CHEMINOX CL-T-2R/Dithiocarbamate |
||||||||||
| NOXTITE PA-401L | 48 | -14 | -10 | -12 | +10 | |||||||||||
| NOXTITE PA-402 | 40 | -31 | -24 | -26 | +13 | |||||||||||
| NOXTITE PA-402L | 33 | -31 | -25 | -27 | +15 | |||||||||||
| NOXTITE PA-42400 | 37 | -31 | -25 | -28 | +14 | |||||||||||
| NOXTITE PA-403 | 38 | -36 | -27 | -30 | +17 | |||||||||||
| NOXTITE PA-44200 | 27 | -44 | -38 | -41 | +39 | |||||||||||
| NOXTITE PA-44201 | 30 | -42 | -36 | -39 | +23 | |||||||||||
| NOXTITE PA-44300 | 31 | -41 | -34 | -38 | +15 | |||||||||||
Special Crosslinking Type
| Product Name | Mooney Viscosity ML1+4(100℃) |
Low-Temp Properties | Oil Swell(%) - IRM903 |
Crosslinking Site Type | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tg*1(℃) | Tb 50%*2(℃) | TR10*2(℃) | ||||||||||||||
| NOXTITE PA-421L | 35 | -17 | -13 | -15 | +10 | Quaternary ammonium salt/N,N’-Diphenylurea | ||||||||||
| NOXTITE PA-422L | 30 | -33 | -26 | -30 | +14 | |||||||||||
| NOXTITE PA-521 | 51 | -17 | -17 | -16 | +10 | CHEMINOX AC-6/ Tertiary amine complex absorbed on silica carrier, CHEMINOX CLZ77/ Tertiary amine complex absorbed on silica carrier |
||||||||||
| NOXTITE PA-522 | 30 | -31 | -26 | -28 | +14 | |||||||||||
| NOXTITE PA-522HF | 32 | -31 | -26 | -27 | +25 | |||||||||||
| NOXTITE PA-530 | 26 | -31 | -26 | -27 | +24 | |||||||||||
| NOXTITE PA-522V | 34 | -31 | -27 | -28 | +25 | |||||||||||
| NOXTITE PA-524 | 25 | -44 | -36 | -39 | +31 | |||||||||||
| NOXTITE PA-524K | 28 | -42 | -32 | -38 | +20 | |||||||||||
| NOXTITE PA-526 | 40 | -26 | -21 | -22 | +12 | |||||||||||
| NOXTITE PA-526L | 27 | -26 | -21 | -20 | +12 | |||||||||||
| NOXTITE PA-526B | 36 | -26 | -24 | -24 | +20 | |||||||||||
| NOXTITE PA-523H | 31 | -31 | -28 | -28 | +29 | |||||||||||
*1 Polymer
*2 Standard Vulcanized Rubber
<Characteristics by Crosslinking Type >

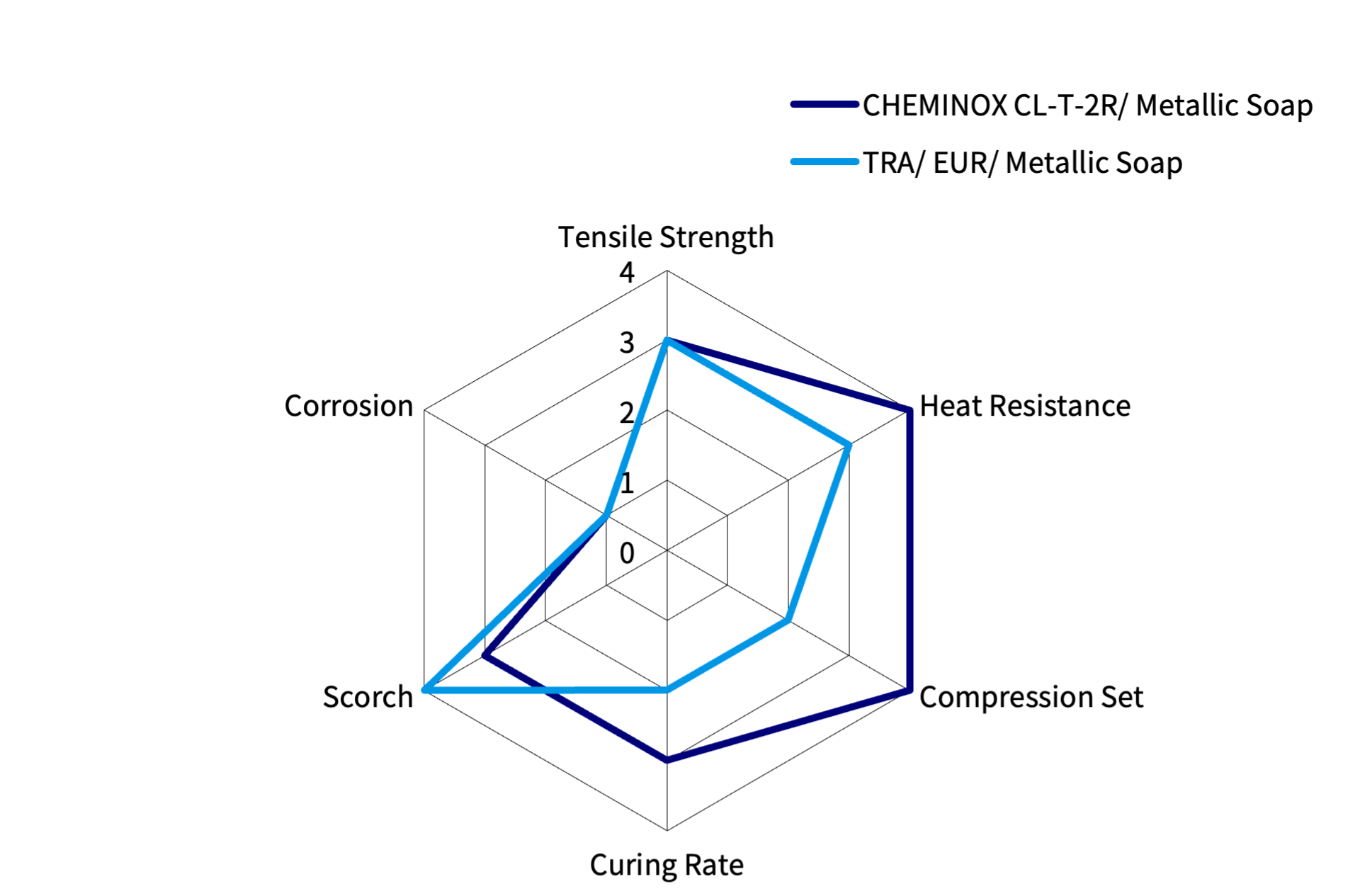

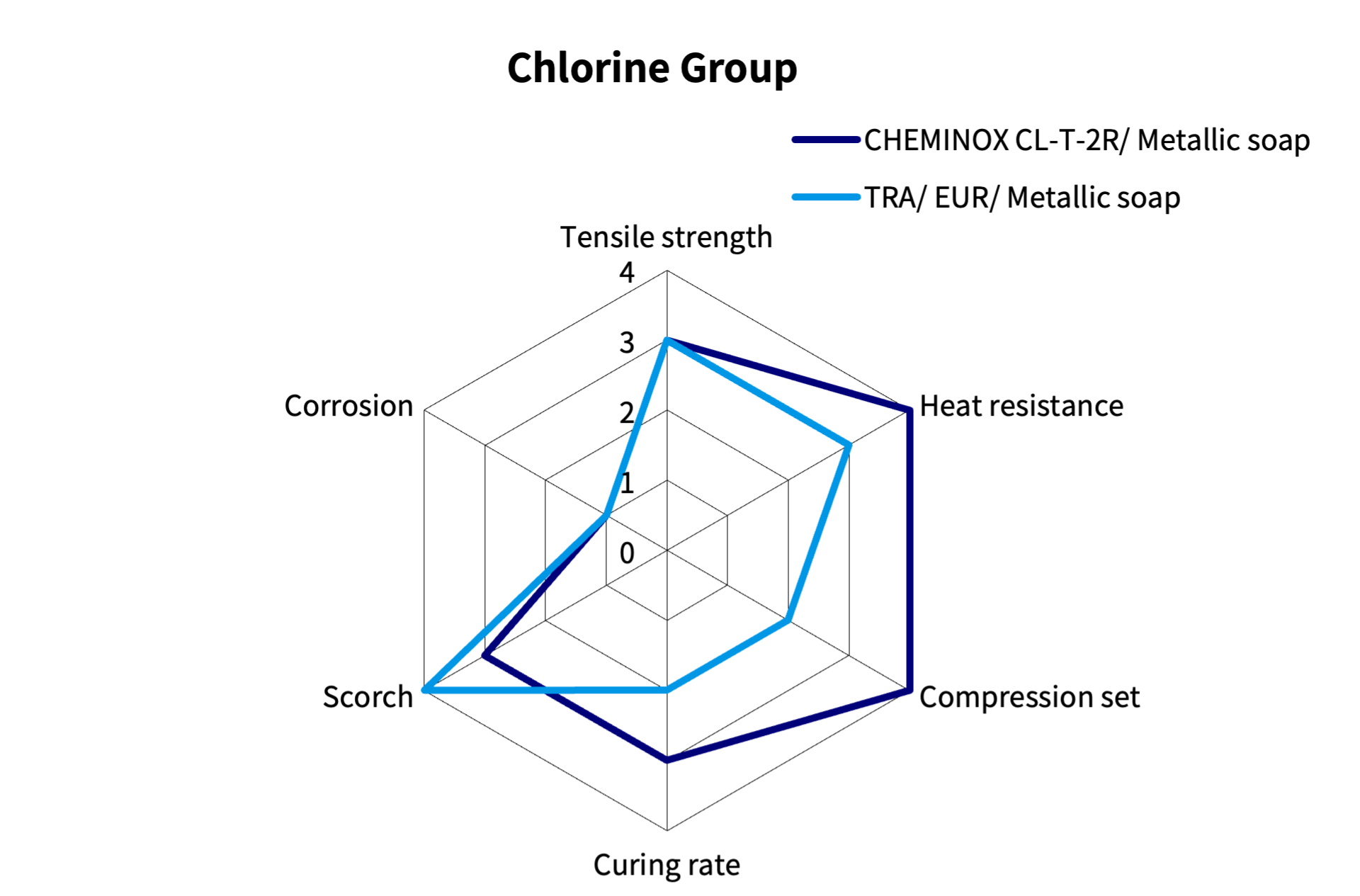

Chlorine Type

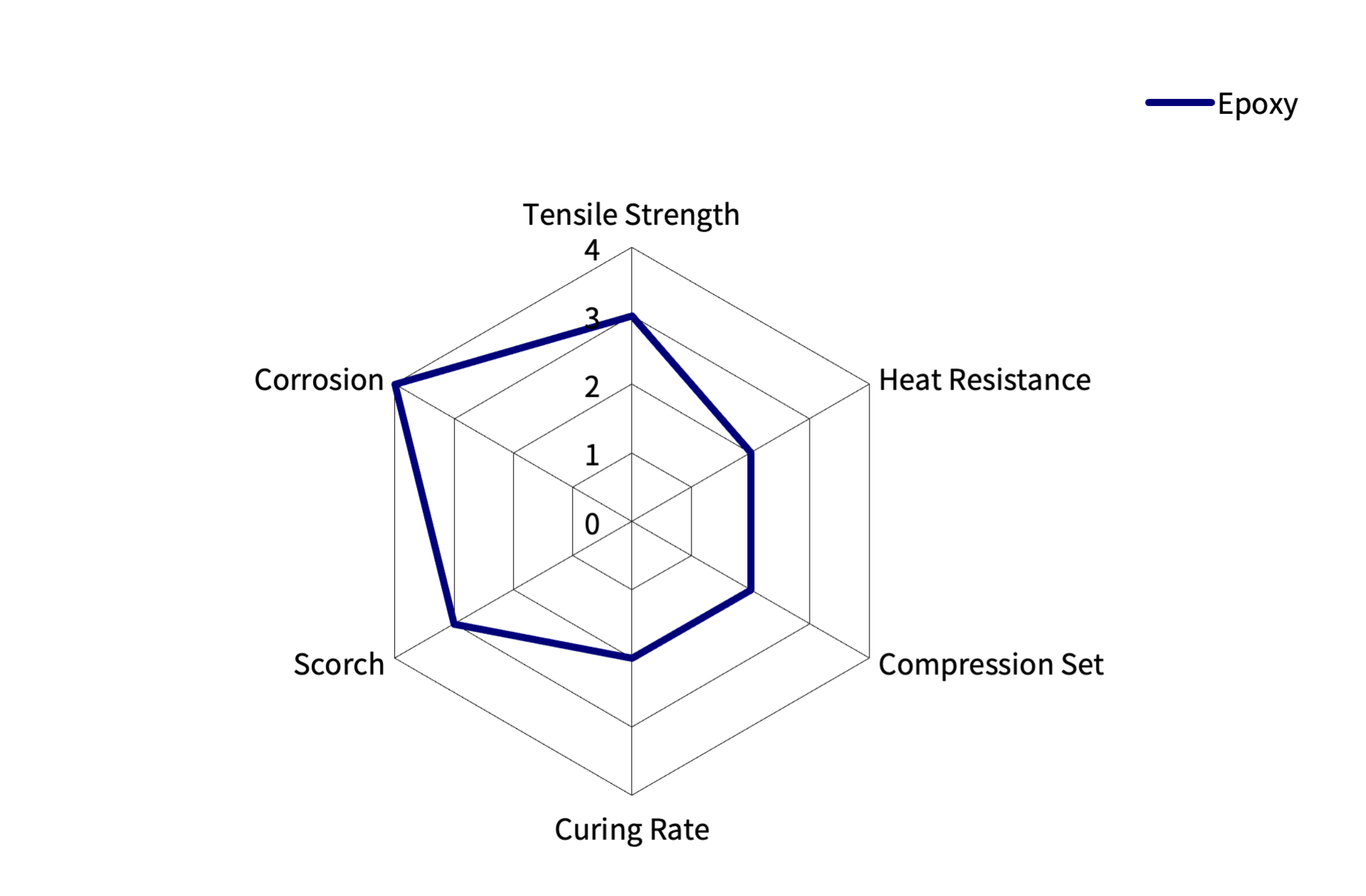

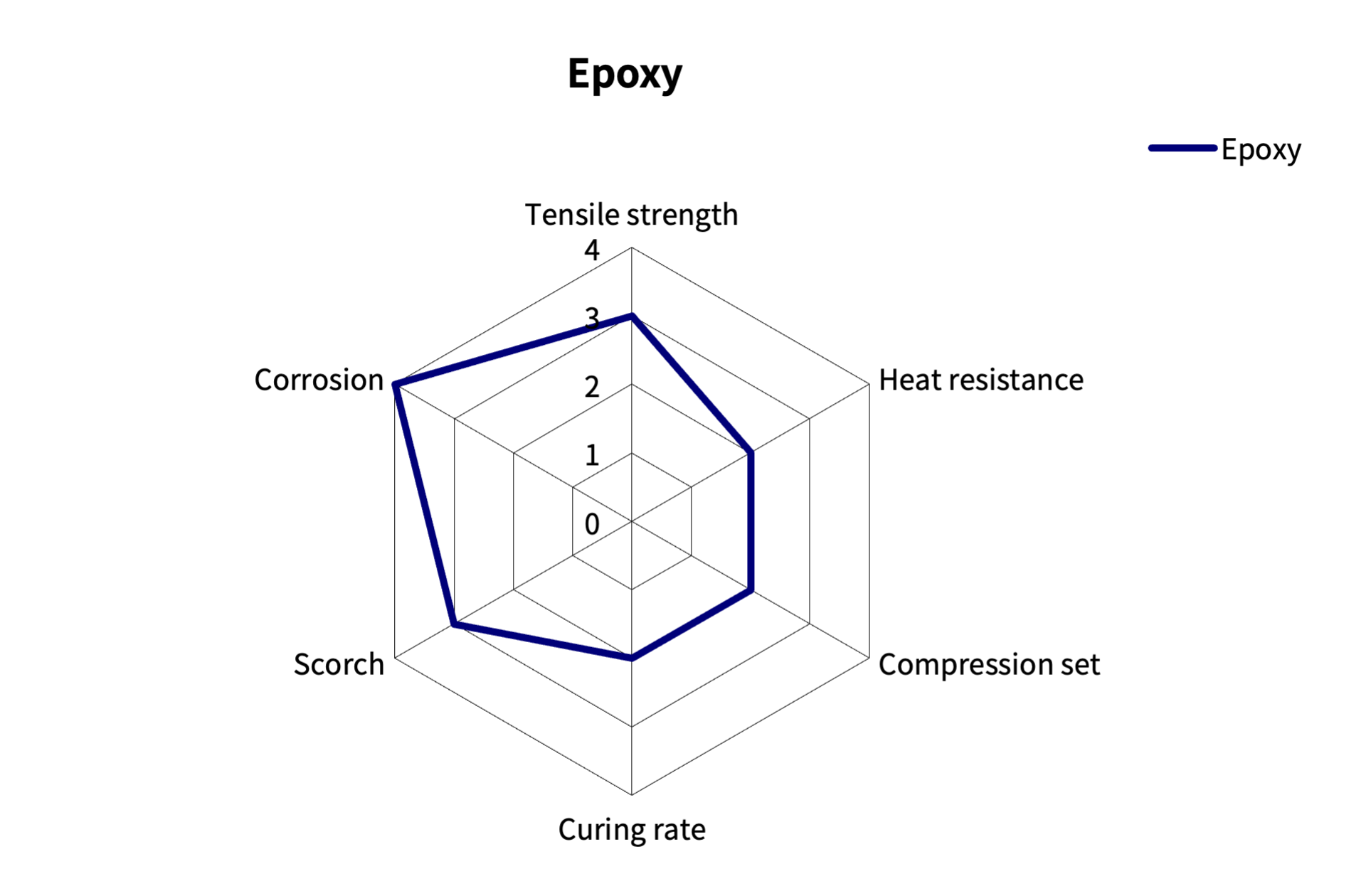

Epoxy Type

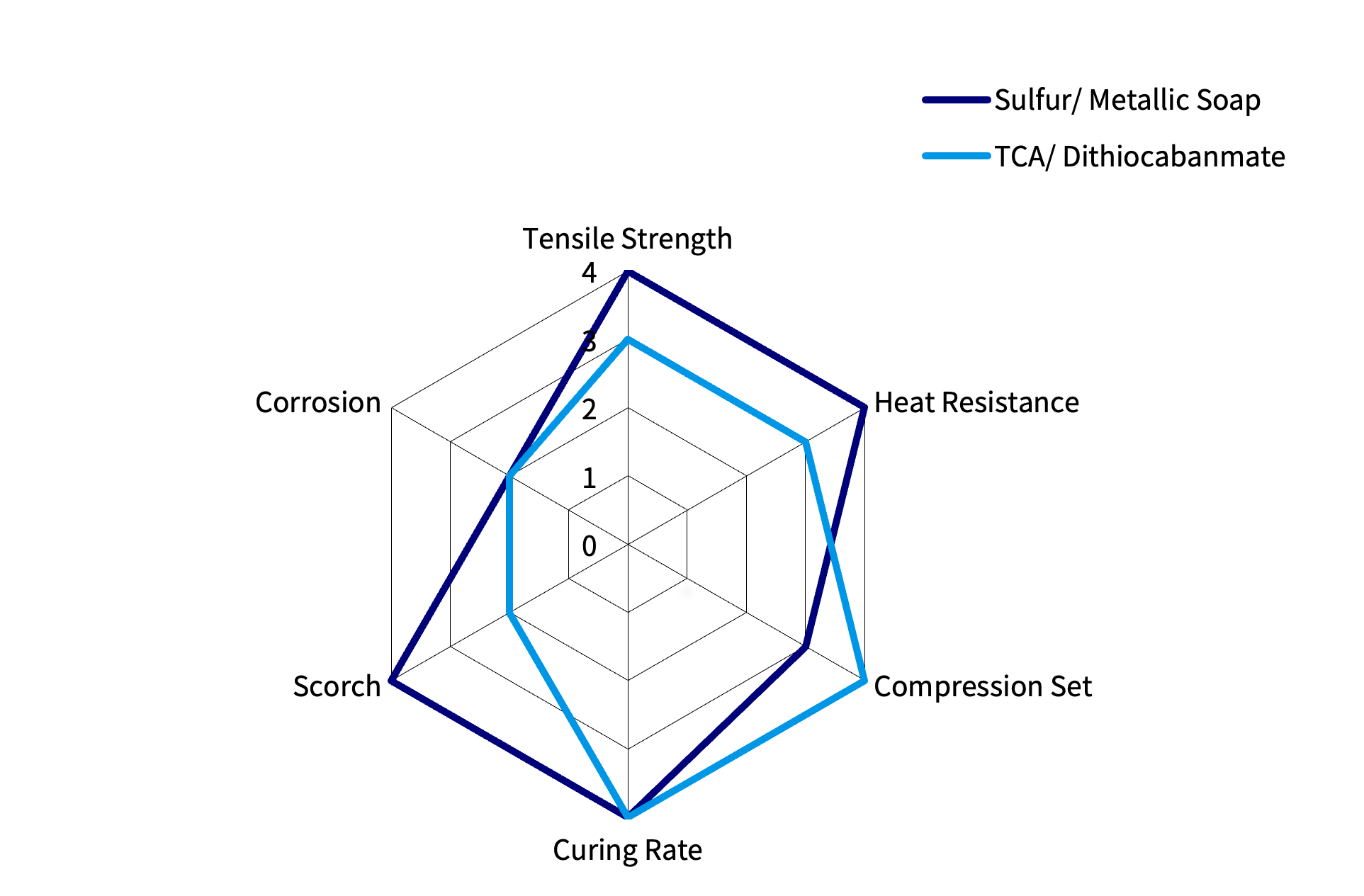

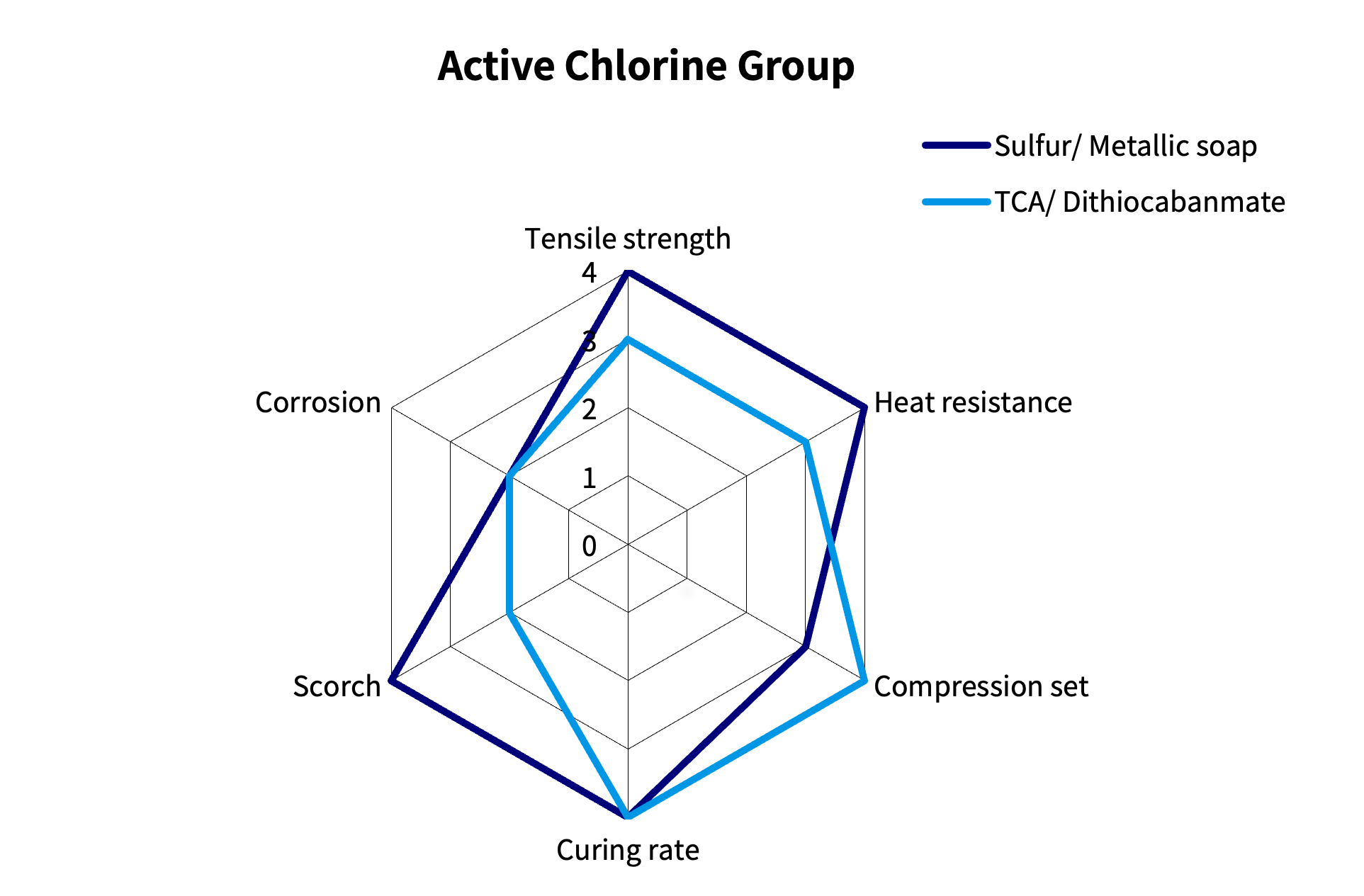

Active Chlorine Type

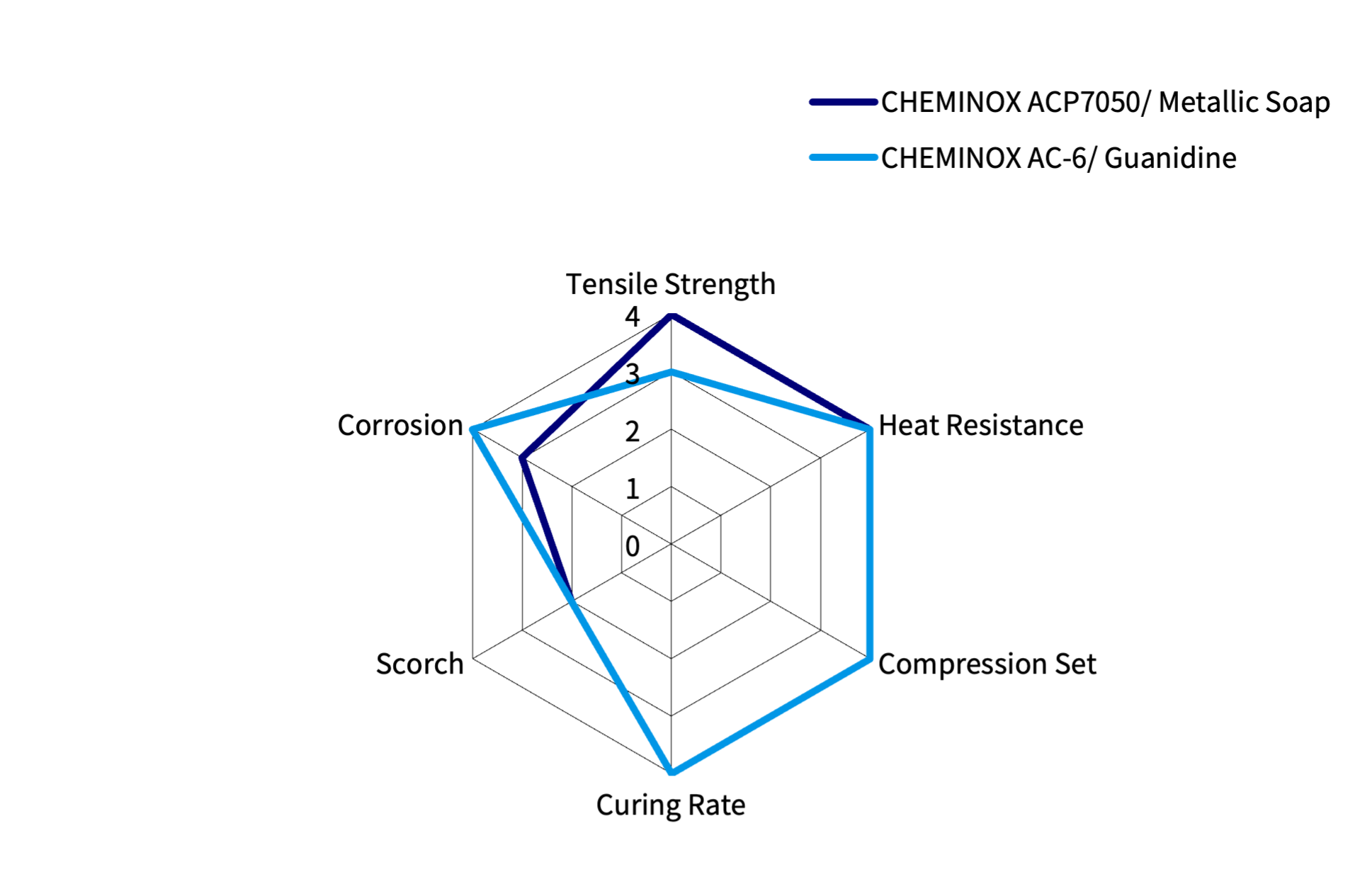

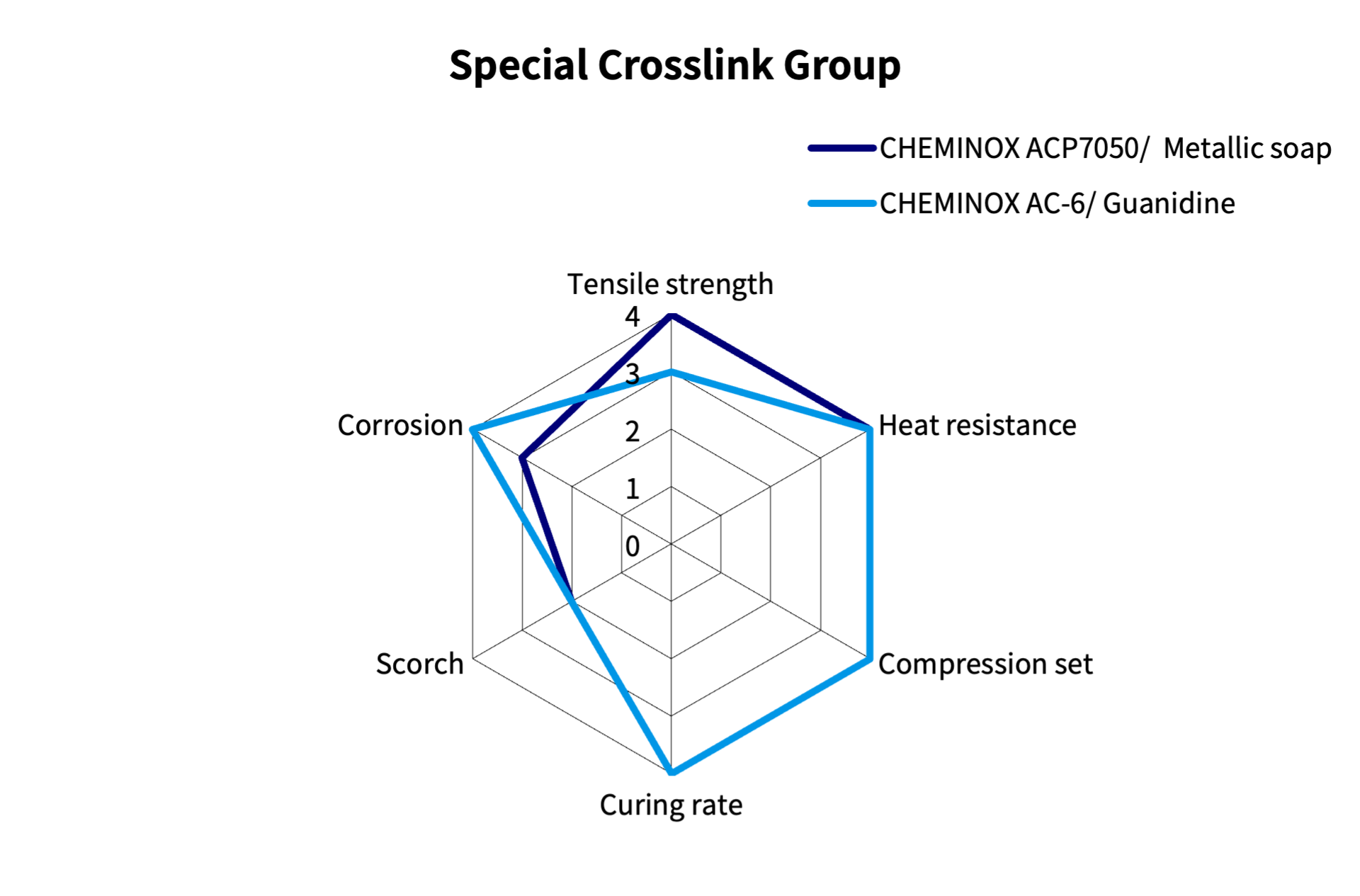

Special Crosslinking Type (Short Post Cure)
Special Crosslinking Type (Gasket)
Special Crosslinking Type (Hose)
Applications
NOXTITE acrylic elastomer is extensively used in the automotive industry for its excellent oil resistance, even in high-temperature environments. It can also be utilized in various industrial materials due to its ability to provide elasticity and flexibility as an adhesive raw material.
Key Applications

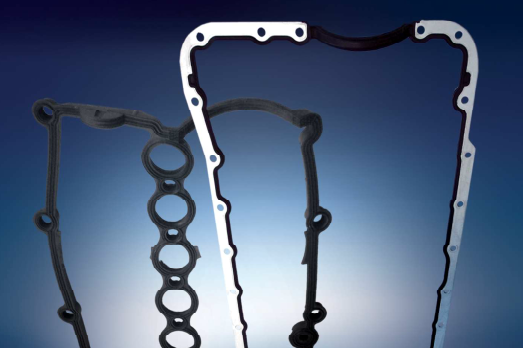

- Seals (O-rings, oil seals, oil filter packings, head cover gaskets, etc.)

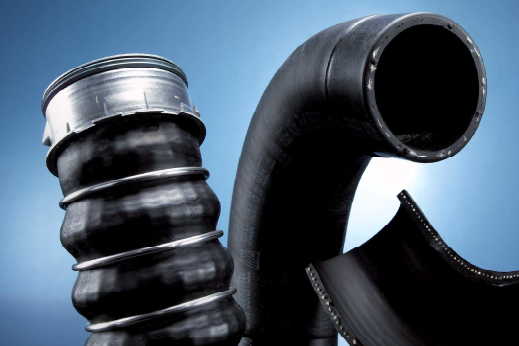

- Hoses (turbocharger hoses, oil cooler hoses, etc.)
- Electric vehicle parts (seals for e-Axles, cooling hoses, etc.)
- Others (adhesives, etc.)
